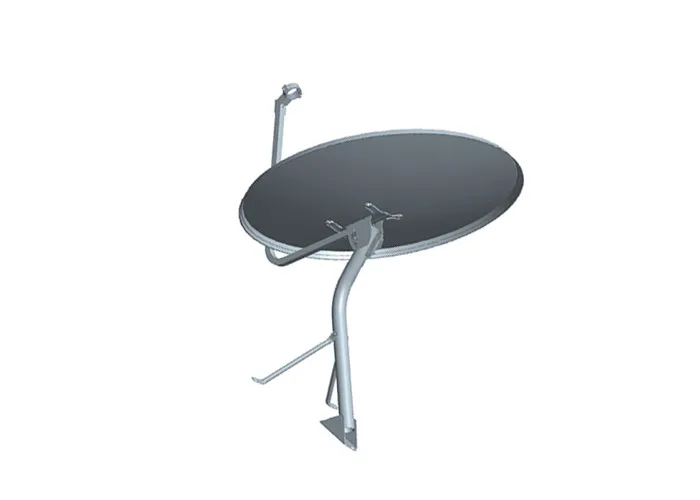

75cm Satellite Outdoor Ku Band TV Dish Antenna
Main Features Optimized structure design, easy for field assembly and alignmentHigh performance and surface precisionSurface anti-corrosion treatment for long operation lifeCustomizable logo and colorScale of survival wind force up to 12(dish direction fixed)Package suitable for air, ocean and land ......
Send Inquiry
Product Description
Main Features
- Optimized structure design, easy for field assembly and alignment
- High performance and surface precision
- Surface anti-corrosion treatment for long operation life
- Customizable logo and color
- Scale of survival wind force up to 12(dish direction fixed)
- Package suitable for air, ocean and land transportations
Technical Specifications
| No. | Specifications | |
| Items | Spec | |
| 1 | Antenna Type | KU 75cm offset Antenna |
| 2 | Antenna′s color | Cold Grey 7c |
| 3 | Frequency range | 10.7~12.75 GHz |
| 4 | Gain @ 11.95GHz | ≥37.54dBi |
| 5 | Reflective surface dimension | a=750mm,b=813mm |
| 6 | F/D | 0.6 |
| 7 | Efficiency | ≥63% |
| 8 | Focal length | f=450 |
| 9 | Polarization offset range | 24.3° |
| 10 | Reflector thickness | 0.6mm (Before Powdering) |
| 11 | LNB holder inner diameter | Φ40±1mm |
| 12 | Pole diameter | Φ42mm |
| 13 | Pole thickness | 1.5mm |
| 14 | Elevation angle | 5~85° |
| 15 | Azimuth Alignment | 0~360° |
| 16 | Working tmepreature | -50°~70ºC |
| 17 | Working Environmental humidity | 5~95% |
| 18 | Calibration angle | 10~90° |
| 19 | Installation type | Column |
| 20 | Wind loading ability | Working normally in level 8 wind |
| Can work in level 10 wind | ||
| Survive in level 12 wind | ||
| 21 | Main mechanical part | Galvanized Steel |
| 22 | Painting | Polyester power coating (Grey) |
| 23 | Accessories/Fasteners | Dacromet |
Product Profile
Company Profile
Welcome to Gospell Digital Technology Co., Ltd
FAQ
Q1: How to get a sample?
A: Sample order is acceptable. After price confirmation, you can require for samples to check our quality. If you need samples, we will charge for the sample and freight cost. The sample fee will be refunded if you place order.
Q2: What about the lead time?
A: In general, the lead time is about 25 to 35 days. But please confirm the exact delivery time with us as different products and different quantity will have different lead time.
Q3: How about the packing and shipping?
A3: Normally, we have carton for packing. If you have any other special requirements, please feel free to contact with us.
Q4: How about the OEM/ODM services?
A4 : We provide all kinds of OEM/ODM services ,
For example: Logo print on casing ,Customized packing, Software Customization. Please contact us to check the detail things before placing order.
Q5: How about the payment terms?
A5: We accept 30%T/T in advance, the 70% T/T balance before the delivery.
L/C, Money Gram and Western Union are also available.
Q6: How about warranty and procedure?
A6: Warranty time is 12 months. If you have any problem, please contact us in time, we will help you to resolve
the problem.
