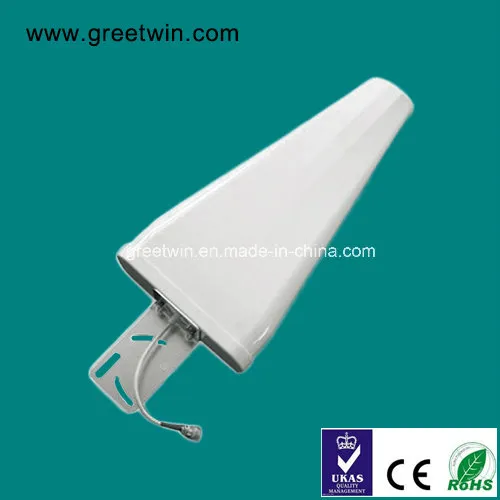

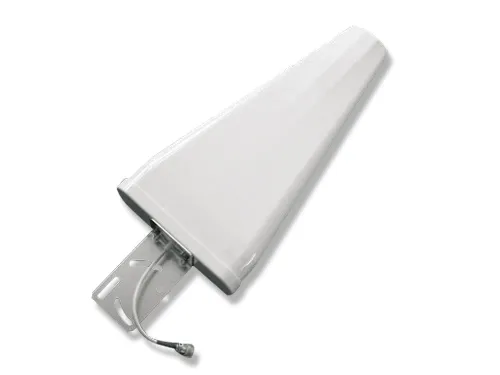

698-2700MHz Logarithmic Periodic Dipole Antenna/Lte 4G Antenna (GW-LPDA7027-11d)
698-2700MHz Logarithmic Periodic Dipole Antenna/LTE 4G Antenna(GW-LPDA7027-11d)Product Feature:* Wide band and high gain.* Eelegant appearance, simple installation, stable performance.* Good performance in anti-vibration and resistant to aging.* Can be installed indoor or outdoor pole mount. Electri......
Send Inquiry
Product Description
Product Feature:
* Wide band and high gain.
* Eelegant appearance, simple installation, stable performance.
* Good performance in anti-vibration and resistant to aging.
* Can be installed indoor or outdoor pole mount.
Electrical Specifications | |
| Frequency range(MHz) | 698~960/1710~2700 |
| Bandwidth(MHz) | 262/990 |
| Gain(dBi) | 10/11 |
| Half-power beam width(°) | H:65/50 V:55/40 |
| VSWR | ≤1.8 |
| Input Impedance(Ω) | 50 |
| Polarization | Vertical |
| Maximum input power(W) | 50 |
| Lightning protection | DC Ground |
| Input connector type | N Female |
| Mechanical Specifications | |
| Dimensions (mm) | 445*210*65 |
| Antenna weight(kg) | 0.91 |
| Operating temperature(°c) | -40~60 |
| Rated Wind Velocity(m/s) | 60 |
| Radome material | ABS |
| Radome color | white |
| Mounting hardware(mm) | 35-50 |

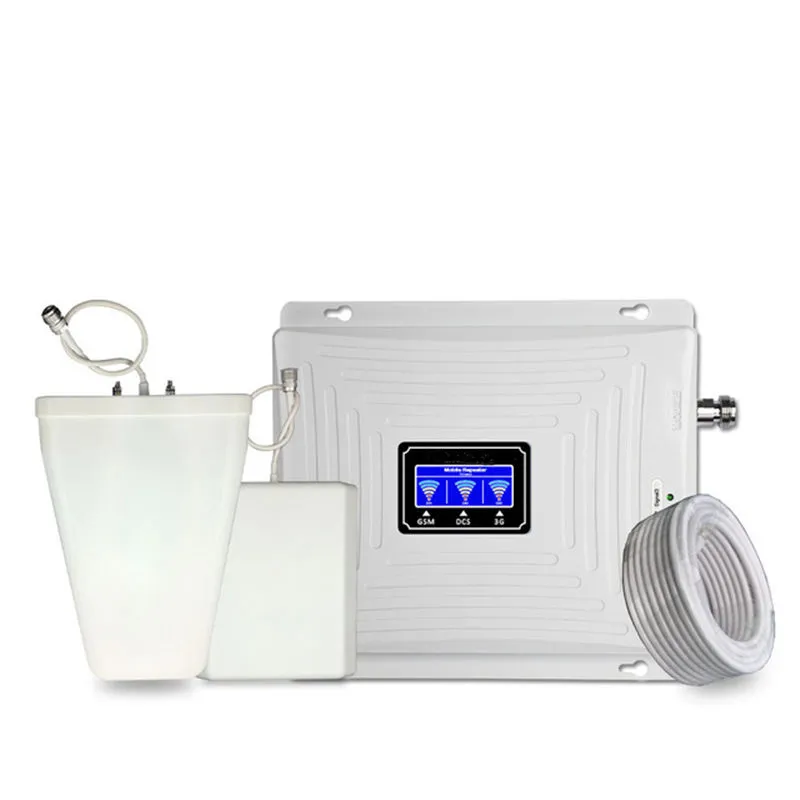

Recommended Accessories:
1) Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
2) Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3) 5D-FB coaxial cable with connecter (Cable length optional)
Method of Installation:
The booster is fixed onto the wall through expansion bolts.
A. Drill holes in the selected place and install expansion bolts.
B. Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.
C. Place the booster on and fasten it.
D. Connect cables and power cables to the booster respectively.
E. After installing the booster as described above, power on the booster to check the operation status.

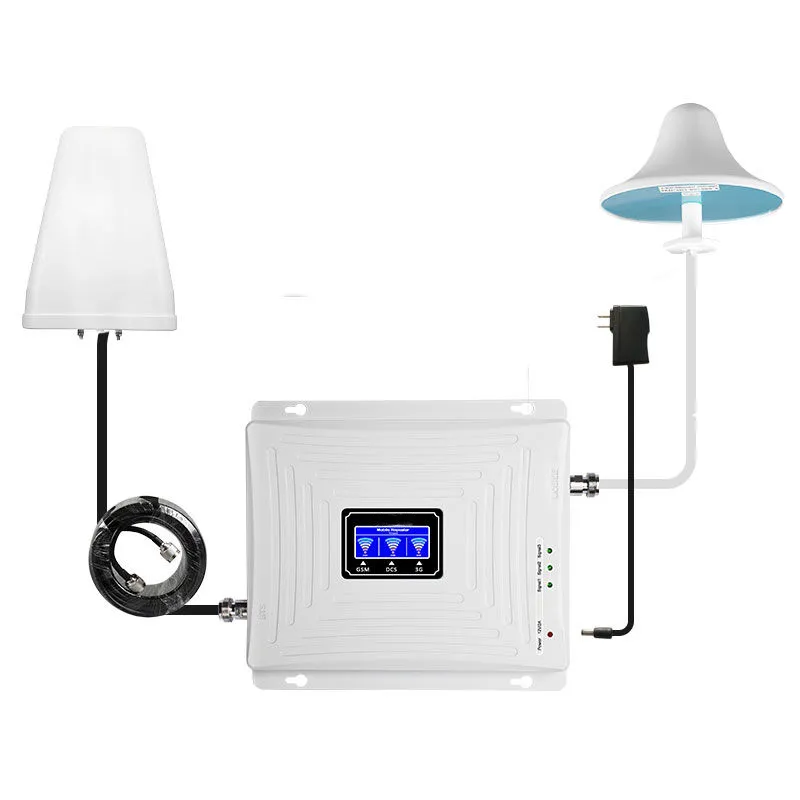

Connection:
A. BTS Port: donor antenna cable is connected with Outdoor Port;
B. MS Port: service whip antenna is connected with Indoor Port;
C. DC IN connected with Power adaptor.
Q1.Payment Method
T/T, Western Union, Paypal, and Credit Card are available,
and we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please us with more details.
Q2.Delivery Date&Lead Time
| Quantity | Lead time | Delivery to American/Middle East/Asia/Europe |
| <20 pcs | 3-5 business days | 3-7 business days by DHL 5-7 business days by FedEx/UPS |
| 20-100 pcs | 7-15 business days | |
| >100 pcs | 15-24 business days |
Q3. Can I customize frequencies?
Yes, we can customize 2G/3G/4G/5G/GSM/CDMA/DCS/AWS/PCS/WCDMA/LTE,etc.
Q4. What should I do if I don't know about frequency in my country?
Please feel free to us with your inquiry, we will find the frequency you need and address your problems.

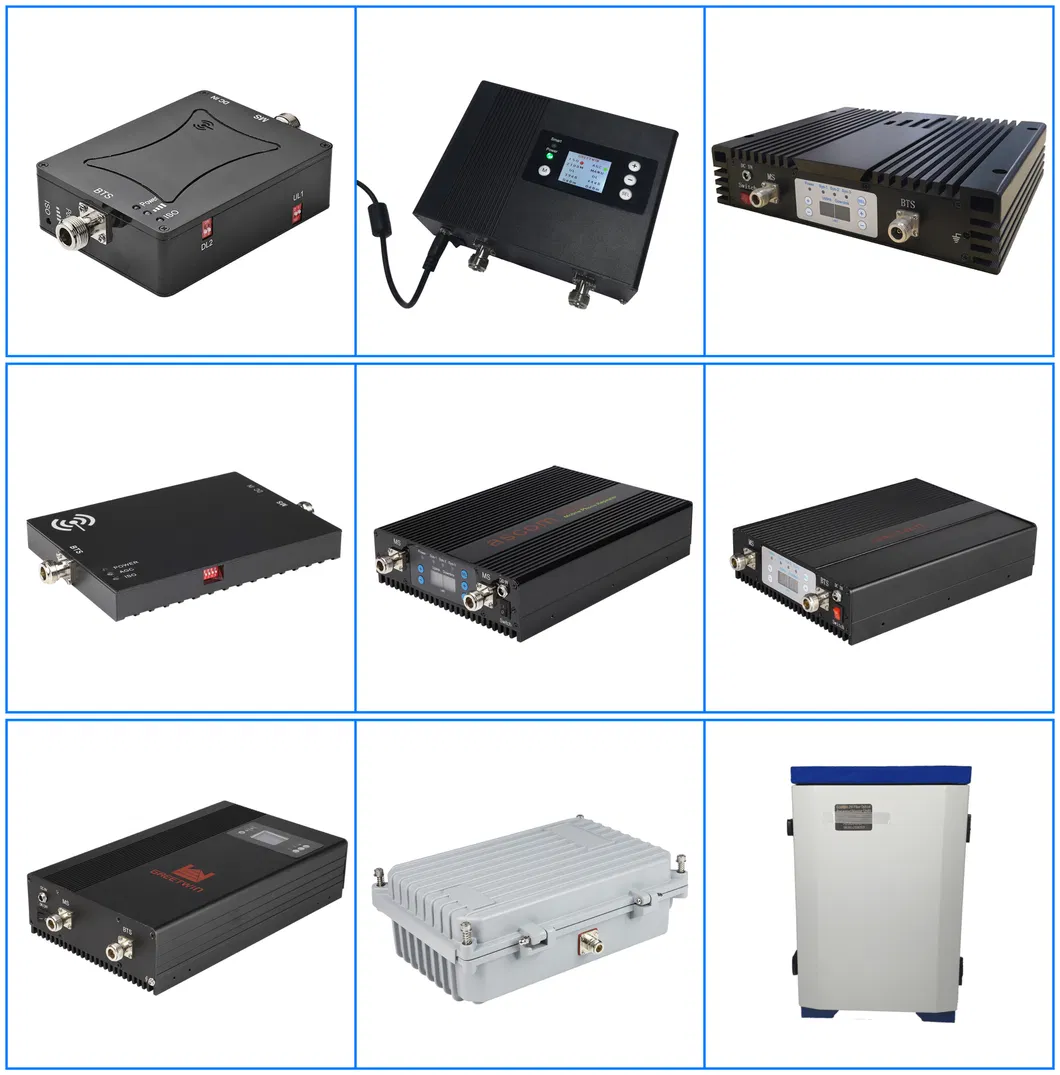

More signal repeater please it!
