4G Omni Antenna, 806-960/ 1710 -2700MHz Frequency Range

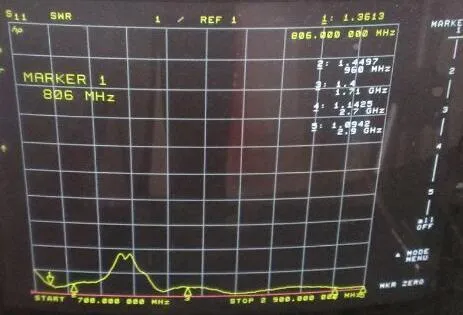

ELECTRICAL SPECIFICATIONS Frequency Range 806-960/1710-2700 MHz VSWR ≤1.5 Impedance 50Ω Gain 4.6 / 6.5dB ......
Send Inquiry
Product Description
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range 806-960/1710-2700 MHz VSWR ≤1.5 Impedance 50Ω Gain 4.6 / 6.5dB | Polarization Vertical Maximum Power Input-watts 100 W Horizontal Beam Width 360º Vertical Beam Width 25º Lighting Protection Direct Ground |
| MECHANICAL SPECIFICATIONS | |
| 25cm Height 32cm(including 90°bracket) Radome Material ABS Radiating Element Material Aluminium alloy | Color/finish White Connector Supplied N-Female Weight 0.5Kg Hold Pole Diameter Ø30~Ø50 mm |
