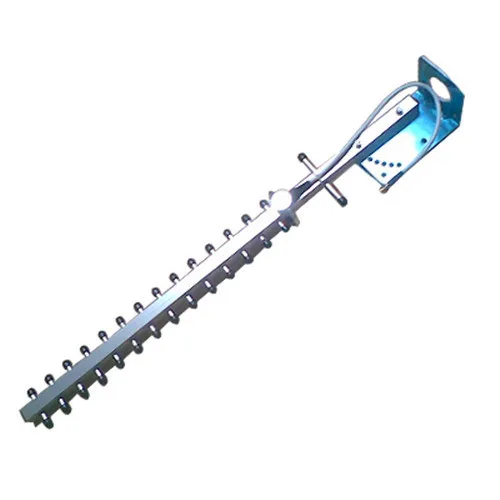

3G Yagi Antenna (15dBi Gain and 1710 -2170MHz)
Electrical SpecificationsFrequency Range1710-2170MHzVSWR≤1.5Gain15dBiHorizontal beam width50°Vertical beam width42°Front-to-back ratio≥17dBPolarizationVerticalInput Impedance50ΩMaximum input power50WLightning protectionDC GroundMechanical SpecificationsInput c......
Send Inquiry
Product Description
Electrical Specifications | |
| Frequency Range | 1710-2170MHz |
| VSWR | ≤1.5 |
| Gain | 15dBi |
| Horizontal beam width | 50° |
| Vertical beam width | 42° |
| Front-to-back ratio | ≥17dB |
| Polarization | Vertical |
| Input Impedance | 50Ω |
| Maximum input power | 50W |
| Lightning protection | DC Ground |
| Mechanical Specifications | |
| Input connector type | N-K |

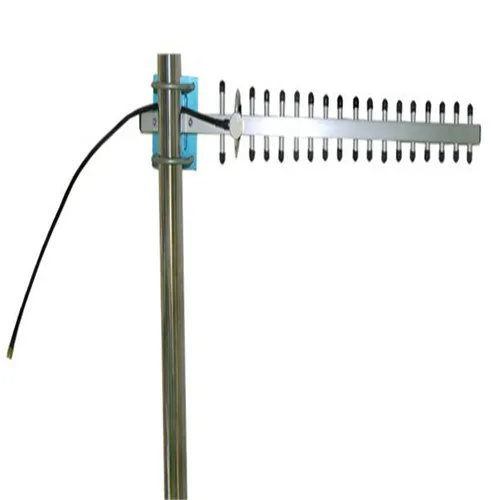

| Installation | Pole-holding |
| Dimensions | 760mm |
| Antenna weight | 0.5kg |
| Radiating Element Material | AI |
| Operating temperature | -40°C to +70 °C |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, Western Union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
