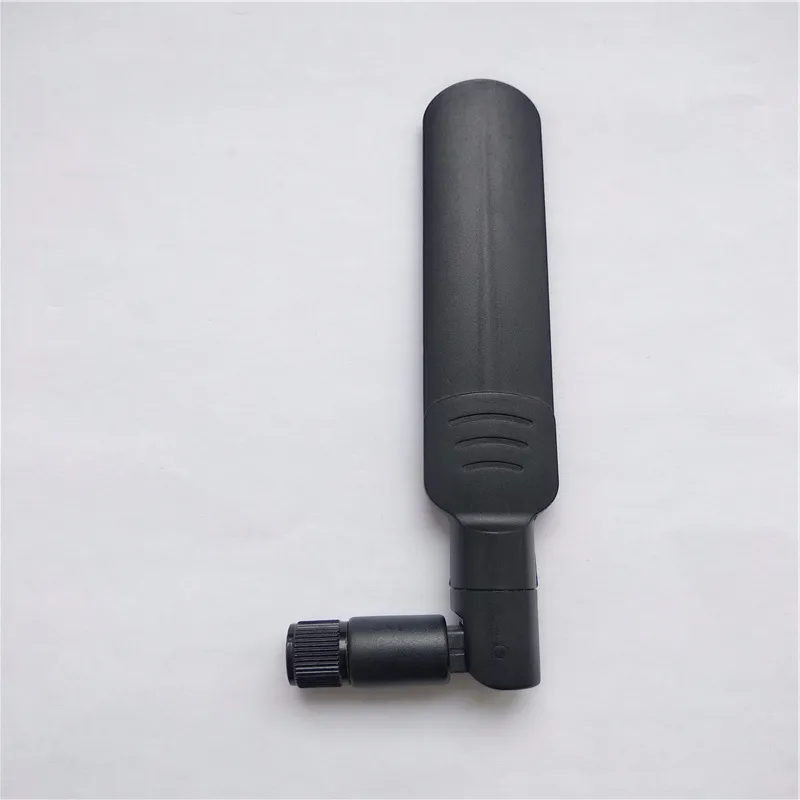

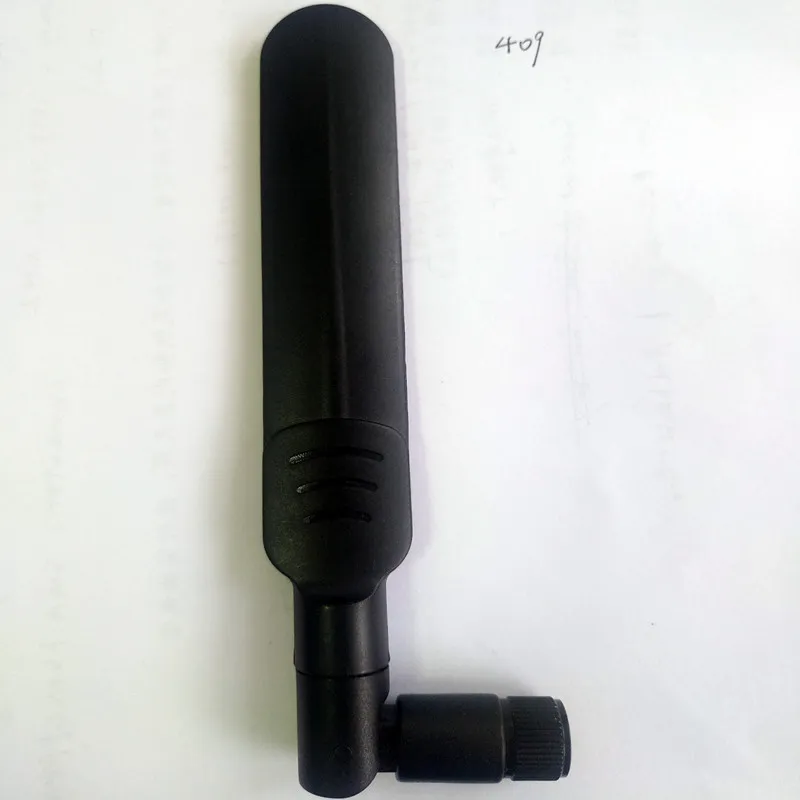

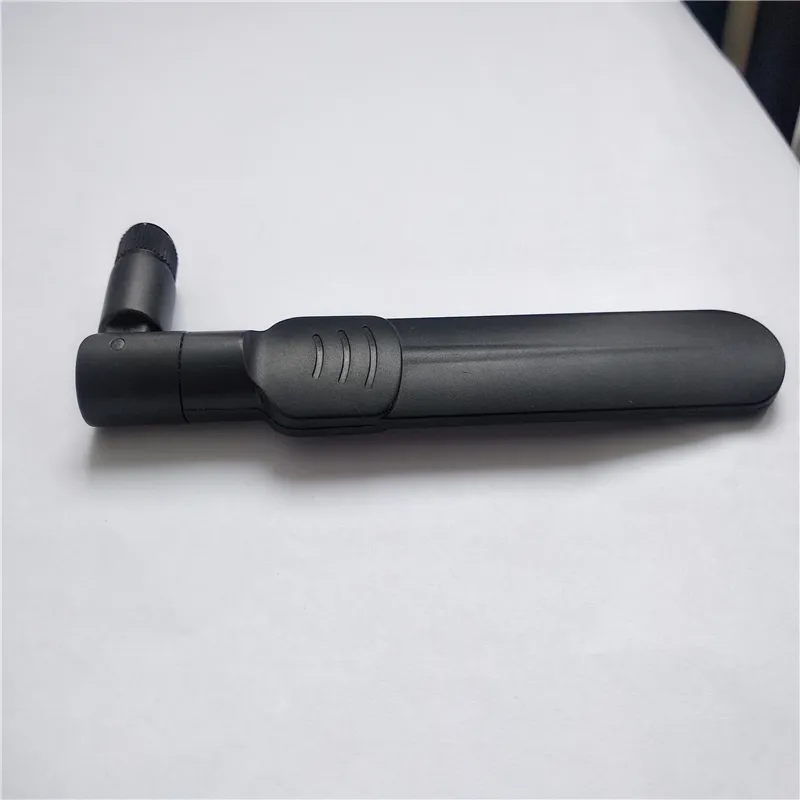

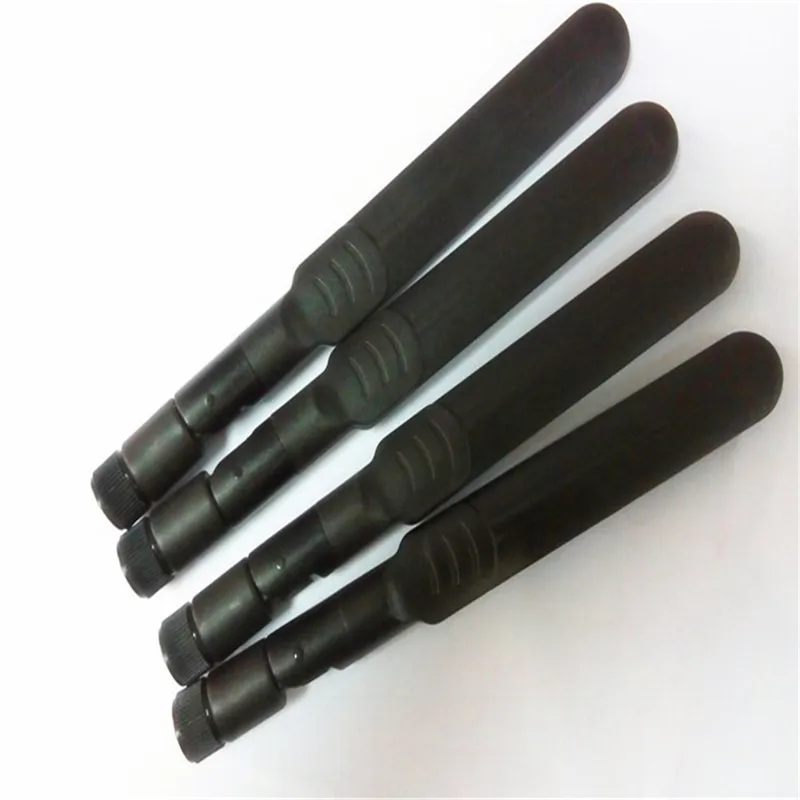

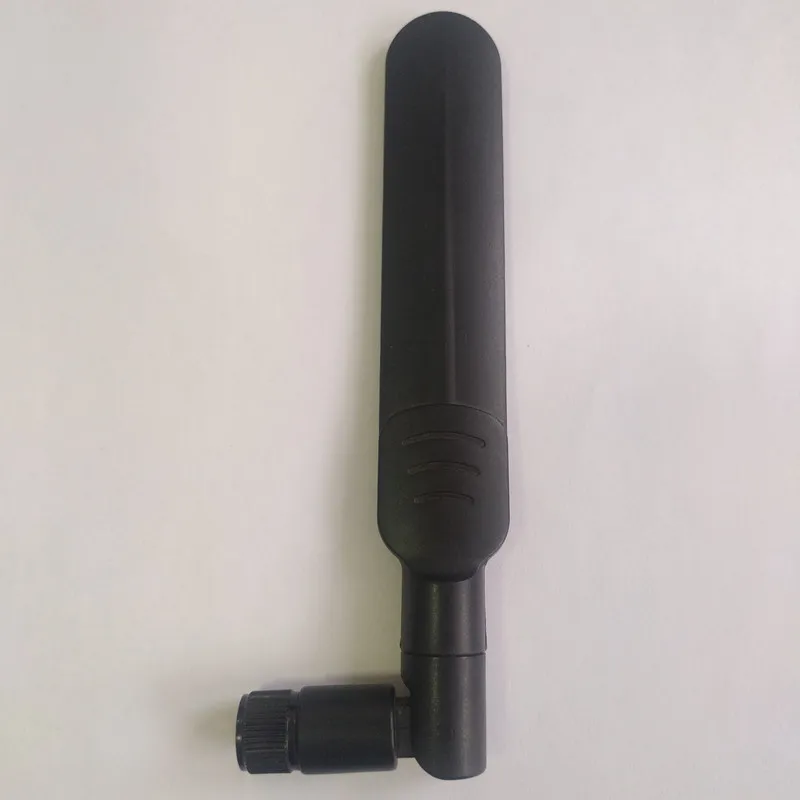

3.0dBi 790-960/ 1710 -2700 MHz 4G Rubber Antenna with SMA Male Connector
GL-DY409 3.0dBi Gain 4G GSM Rubber Antenna with SMA male connectorFrequency-MHz790-960/1710-2700Gain3.0dBiVSWR<2.5Bandwidth(MHz)170/990RadiationOmniNormal Impedance-Ω50PolarizationVerticalMechanical IndexConnectorSMA maleAntenna Dimension-mmØ17.5*157.5Radome MaterialABSEnviro......
Send Inquiry
Product Description
GL-DY409 3.0dBi Gain 4G GSM Rubber Antenna with SMA male connector
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, Western Union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
| Frequency-MHz | 790-960/1710-2700 |
| Gain | 3.0dBi |
| VSWR | <2.5 |
| Bandwidth(MHz) | 170/990 |
| Radiation | Omni |
| Normal Impedance-Ω | 50 |
| Polarization | Vertical |
| Mechanical Index | |
| Connector | SMA male |
| Antenna Dimension-mm | Ø17.5*157.5 |
| Radome Material | ABS |
| Environmentally Friendly | ROHS Compliant |
| Temperature-ºC | -40~+60 |
| Humidity-% | 5~95 |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, Western Union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
