2.4GHz/5.8GHz WiFi MIMO Combination Antenna with 3dBi Gain
ProductWiFi MiMo Combo AntennaP/NGL-DY010MElectrical IndexFrequency-MHz2400-2500/4900-5825Gain-dBi3.0VSWR<2.5Nominal Impedance-Ω50PolarizationLinerMechanical IndexCable Length -mRG174,1.2ConnectorSMA/MCX/FAKRAAntenna Dimension-mm64.1*63*14mmInstallation WayAdhesive/MagnetIngress Protect......
Send Inquiry
Product Description
| Product | WiFi MiMo Combo Antenna | |
| P/N | GL-DY010M | |
| Electrical Index | ||
| Frequency-MHz | 2400-2500/4900-5825 | |
| Gain-dBi | 3.0 | |
| VSWR | <2.5 | |
| Nominal Impedance-Ω | 50 | |
| Polarization | Liner | |
| Mechanical Index | ||
| Cable Length -m | RG174,1.2 | |
| Connector | SMA/MCX/FAKRA | |

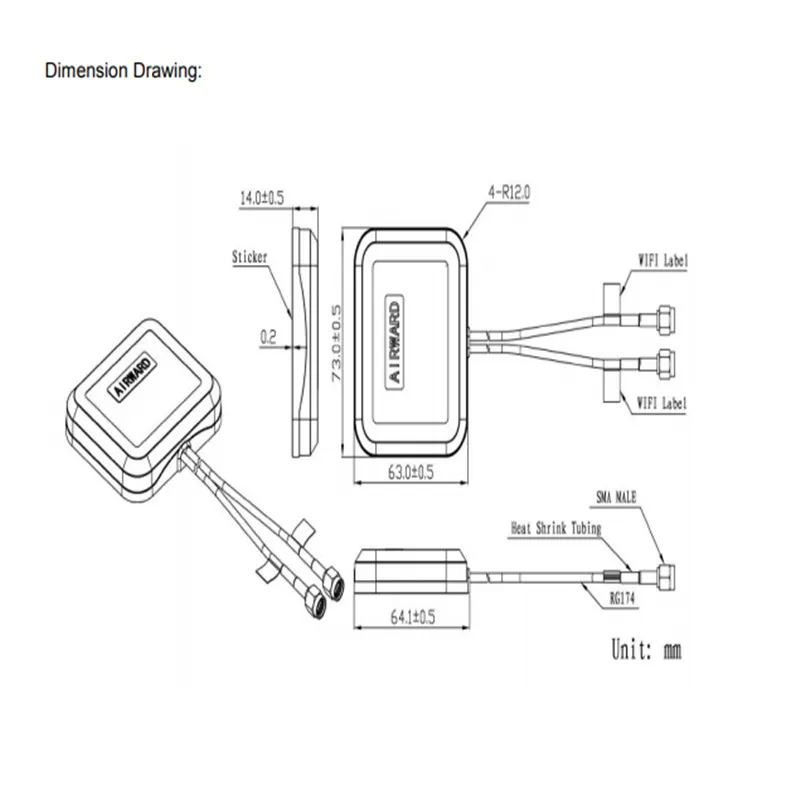

| Antenna Dimension-mm | 64.1*63*14mm | |
| Installation Way | Adhesive/Magnet | |
| Ingress Protection | IP65~IP67(exclude cable outlet) | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant | |
| Temperature-ºC | -40~+85 | |
| Humidity- | 5~95 | |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
